Thermocouple Splitter, mV Splitter.

DAT4631A

Datexel Product Range

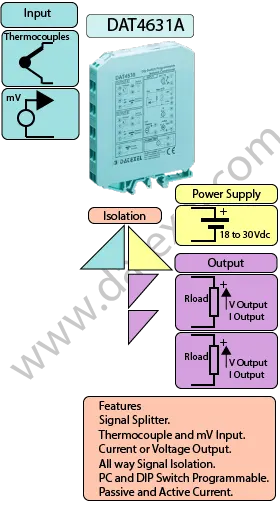

Thermocouple Splitter.
• UL, CSA, CE.
• Isolated Thermocouple Splitter
• Input Thermocouple
• Input mV -100mV to +800mV
• DIP Switch Configurable
• PC Programmable
• Output Voltage or Current
• DIN Rail Mounted
General Description

The DAT4631A is a versatile DIN rail mount converter and splitter designed for precision thermocouple temperature measurement and signal conversion. It converts and linearizes the signal from any thermocouple type, providing two isolated process signal outputs, either voltage or current. Programmable via PC or DIP switches, the DAT4631A offers flexibility and ease of use.

Key Features

  • Wide Thermocouple Compatibility: Supports multiple thermocouple types, including J, K, S, R, B, E, T, and N.
  • mV Signal Handling: Accepts millivolt inputs up to 800mV.
  • Linearized Output: Converts and linearizes the input signal for accurate representation.
  • Cold Junction Compensation: Ensures precise temperature readings by compensating for cold junctions.
  • Versatile Output Options: Provides two isolated voltage or current outputs to meet various application requirements.
  • High Accuracy: Delivers precise measurements for critical applications.
  • Isolated: Ensures signal integrity and safety by providing isolation between input, output, and power supply.
  • PC and DIP Switch Programmable: Offers easy configuration through PC software or manual DIP switches.

The DAT4631A is ideal for applications requiring reliable and accurate temperature measurement and signal conversion. Whether for industrial processes, research, or automation, the DAT4631A delivers dependable performance and flexibility.

INPUT OUTPUT POWER SUPPLY
Thermocouples 2 x Current 4-20 mA Power Supply Voltage 18-32Vdc
mV 2 X 0-10 V Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 35 mA DIP Switch Programmable Between 3 way 1500Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +158°F -20°C +70°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
DAT4631A Datasheet
Buy Online
Applications
Drawings
Signal Splitters

Specifications

Input: K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, mV, See Data sheet for range.
Output: 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 55 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

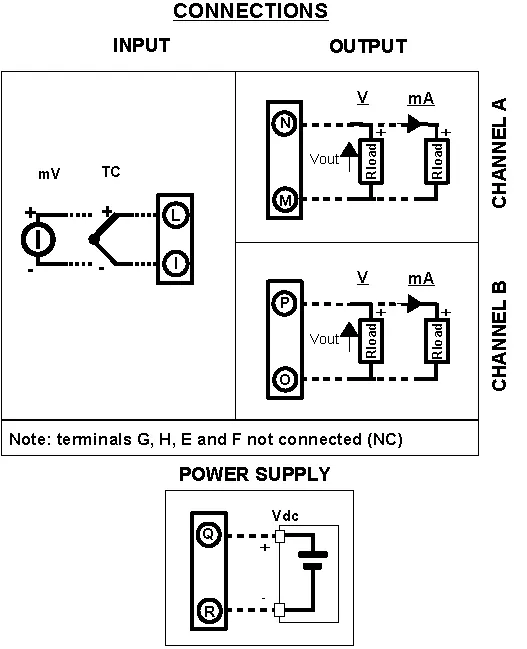

Thermocouple Signal Splitter Input

Input.
Thermocouple Positive L Negative I
mV Positive L Negative I
Signal Output Channel A Channel B
Voltage Positive N Negative M. Positive P Negative O.
Current Positive N Negative M. Positive P Negative O.
Power Supply (18-30Vdc). Positive Q Negative R.
Thermocouple Signal Splitter wiring Diagram.
