USB to modbus isolated converter.
DAT3580USB 2W
The DAT3580-USB/2W Isolated USB to Modbus Converter provides a reliable interface between a USB port and an RS-485 Modbus RTU network. It guarantees full galvanic isolation between the power supply, the USB port, and the RS-485 line, eliminating ground-loop effects and ensuring safe use in industrial environments.
The converter supports asynchronous transmission with no need for protocol, data format, or baud rate configuration, simplifying integration into Modbus RTU installations. It is particularly suitable for industrial applications where robust isolation and reliable communication are required.
The DAT3580-USB/2W is housed in a 22.5 mm DIN rail–mountable, self-extinguishing plastic enclosure. Multiple units can be mounted side by side when thermal conditions permit, allowing high-density installations. Connections are made via removable screw terminals for the RS-485 interface and a convenient USB flying lead on the front panel.
The device is EMC compliant (Directive 89/336/EEC) and designed for reliable operation even under harsh environmental conditions.
| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| USB | Modbus RTU RS485 | Power Supply Voltage 18-30 Vdc 9-18 Vdc |
| Reverse polarity protection 60Vdc | ||
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 35 Max. | N/A | Between Input/Comms/Power Supply 2000Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4 3/4" x 4 1/2" x 3/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 100 x 120 x 22.5 mm | Humidity (non condensing) 0-90% |
| Weight 3 oz 90 g |
| In compliance with Standard | USB2.0, RS485, RS422 |
| RS485 Interface | |
| Baud-rate | up to 115.2 Kbps |
| 38400bps | 0.75 Mile, 1.2 Km |
| 19200bps | 1 Mile, 2 Km |
| 9600bps | 1. 3/4 Mile, 3 Km |
| 4800bps | 2.5 Mile, 4 Km |
| 2400bps | 3 Mile, 5 Km |
| 1200bps | 4 Mile, 7 Km |
| Number of Modules | Up to 32 |
| Switching time | 150us |
| Internal Terminator Res | 120 Ω |
| DC Power Supply | 10 to 30Vdc |
| Rev polarity protection | 60 Vdc |
| AC Power Supply | 9 to 18 Vac Optional 18 to 30Vac |
| Current consumption | 35 mA max. |
| Connections | |
| USB Cable | 4 Feet 1.8m USB Connector type A |
| RS-485/422 | Screwed removable terminals |
| Isolation | |
| Power supply / USB | 2000 Vac, 50 Hz, 1 min. |
| Power supply / RS485-422 | 2000 Vac, 50 Hz, 1 min. |
| USB / RS485-422 | 2000 Vac, 50 Hz, 1 min. |
| Certifications. | EMC For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| UL | |
| US Standard | UL 61010-1 |
| Canadian Standard | CSA C22.2 No 61010-1 |
| CCN | NRAQ/NRAQ7 |
| Typology | Open Type device |
| Classification | Industrial Control Equipment |
| File Number | E352854 |
| Environmental Conditions | |
| Operative temperature | -1℉ to 140℉ |
| -20℃ to 60℃ | |
| UL Operative temperature | 33℉ to 104℉ |
| -10℃ to 40℃ | |
| Storage temperature | -140℉ to 185℉ |
| -40℃ to 85℃ | |
| Humidity: | (non condensing) 0-90%. |
| Maximum Altitude | 6500ft 2000 m |
| Installation | Inside |
| Category of installation | II |
| Pollution Degree | 2 |
| MECHANICAL SPECIFICATIONS | |
| Housing: | Material self-extinguishing. |
| IP Rating | IP20 |
| Wiring | AWG 14-18/0.8÷2.1 mm2 |
| Tightening Torque | 0.5 N m |
| Mounting | DIN rail standard EN-50022 |
| Dimensions: | W 4 L 5 H 3/4" 100 mm X 120 mm x 22mm |
| Weight: | 7 oz 160 g. |

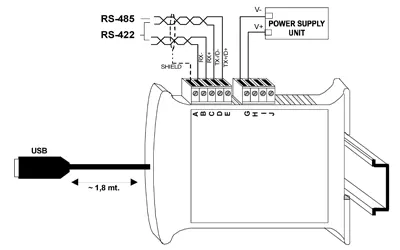

| USB | 5ft 1.8 m |
| RS485 | Positive E Negative D GNA A |
| RS422 | TX+ E TX- D RX+ C RX- B GND A |

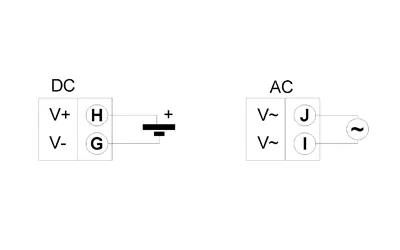

| DC Power supply | Positive H Negative G |
| AC Power supply | I and J |
| DC Power supply | Positive H Negative G |
| AC Power supply | I and J |

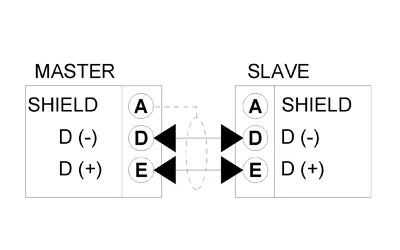

| Master | Positive E Negative D GNA A |
| Slave | Positive E Negative D No ground connection. |

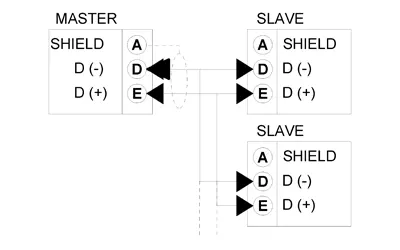

| Master | Positive E Negative D GNA A |
| Slave | Positive E Negative D No ground connection. |
| Slave | Positive E Negative D No ground connection. |
