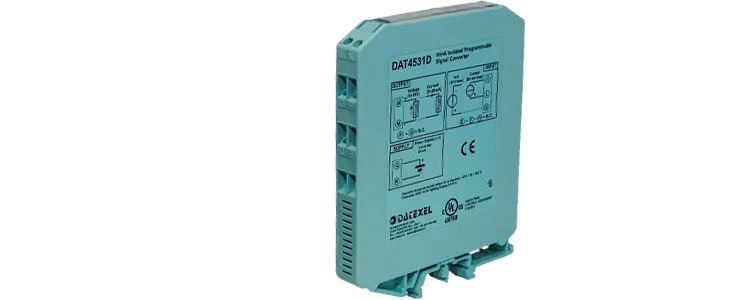

DAT4531D Isolated Voltage and Current Converter
Buy Online

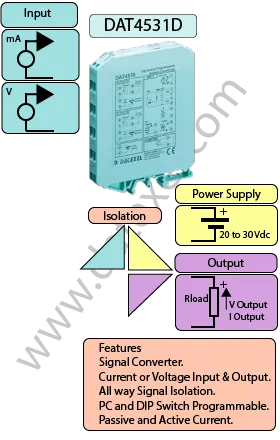

Voltage and Current converter DAT4531D.
• UL, CSA, CE.
• mA Isolated converter
• Isolated Voltage converter
• PC and DIP Switch Configurable
• DIN Rail Mounted
General Description

The DAT4531D is a high-precision, DIN rail mount isolated signal converter designed for accurate measurement and conversion of DC voltage or current (mA) signals. It offers full galvanic isolation between input, output, and power supply, making it ideal for industrial applications where signal integrity and safety are essential. With configuration options via PC software or DIP switches, the DAT4531D provides flexibility and ease of installation.

Key Features

  • Voltage Input: Accepts a variety of DC voltage ranges, ideal for monitoring process and control signals.
  • Current Input: Supports mA signals such as 0-20 mA or 4-20 mA for industrial current loop measurements.
  • Isolated Signal Conversion: Provides full 1500 Vac galvanic isolation between input, output, and power supply.
  • Flexible Output: Configurable for either voltage or current outputs to match downstream device requirements.
  • Linear Output Scaling: Linearizes the signal across the selected input range for consistent, accurate output.
  • PC or DIP Switch Configuration: Easy setup using either PC software or onboard DIP switches.
  • High Accuracy: Suitable for applications demanding stable and reliable signal conversion.

The DAT4531D is ideal for process control systems, data acquisition setups, and industrial automation where isolated conversion of analog signals is required. It ensures accurate signal scaling and transmission to PLCs, SCADA, and monitoring systems.

INPUT OUTPUT POWER SUPPLY
Current 4-20mA, 0-20mA Current 4-20mA, 0-20mA. Power Supply Voltage 18-30Vdc
Voltage 0-10V, 2-10V. Voltage 0-10V, 2-10V. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 60 and 115 mA PC Configurable Between Input/Comms/Power Supply 1500Vac.
DIP Switch Configurable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4 2/5 x 3 1/2" x 1/2" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 112 x 90x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g

Specifications
Input: Current 4-20mA, Range 0-20mA Minimum span 1 mA. Voltage Range from 0 to 10 V Minimum span 1 V. See Data sheet for range.
Output: 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

DAT4531D

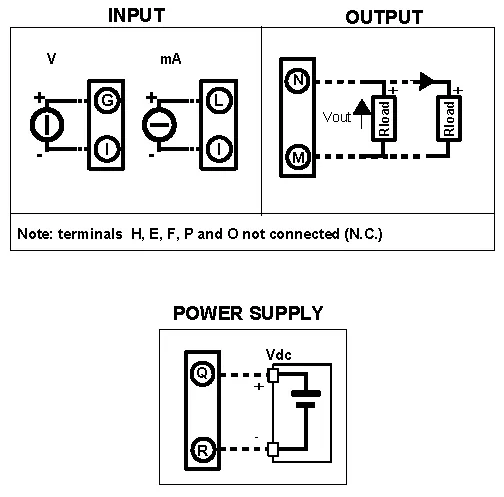

mV Input Connections

Input
Voltage Positive G and Negative I
mA Positive L and Negative I
Output
Current Positive N Negative P.
Voltage Positive N Negative P
Power supply Positive Q Negative R.
Voltage and Current converter wiring Diagram.
Applications

DAT4531D Custom made products.

What is a DAT 4531/D 90911?
The DAT4531/D 90911 has a Voltage input circuit of 10 MOhm impedance.

DAT4531D - Frequently Asked Questions

What type of input signals does the DAT4531D support?
The DAT4531D supports DC voltage and current (mA) inputs, including common ranges like 0-10V, 1-5V, 0-20 mA, and 4-20 mA.
What output signal formats are available?
The device provides isolated voltage or current outputs, configurable via DIP switches or PC software.
Is the DAT4531D isolated?
Yes, it provides 1500 Vac galvanic isolation between input, output, and power supply for enhanced safety and signal integrity.
How is the DAT4531D configured?
Configuration can be done via dedicated PC software or manually using DIP switches located on the device.
What are typical applications of the DAT4531D?
The DAT4531D is used in process control, data acquisition, and industrial automation systems requiring isolated signal conditioning of analog voltage or current inputs.
