0-10V to MODBUS TCP Ethernet.
DAT8017-V

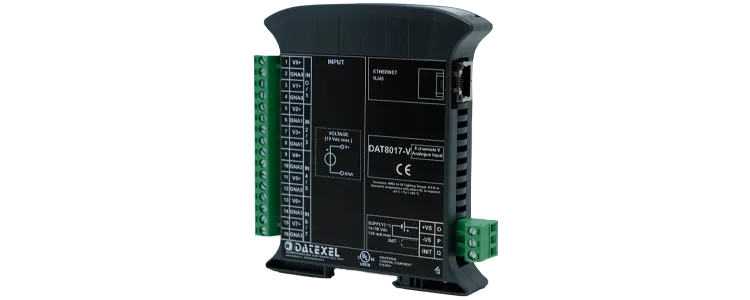

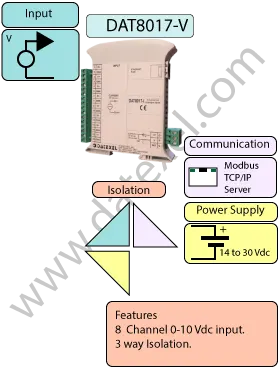

The DAT8017-V is an 8 Channel fully isolated 0-10 V dc to Modbus TCP converter using Ethernet Base 10/100T Communication. The DAT8017-V can accept other voltage ranges such as -10 to +10 Vdc, 2-10 Vdc. The inputs, Ethernet and power supply are isolated from each other up to 1500VAC for 1 minute. The DAT8017-V accepts a wide tolerance on it's power supply from 10 to 30 Vdc and it is mounted on DIN Rail.

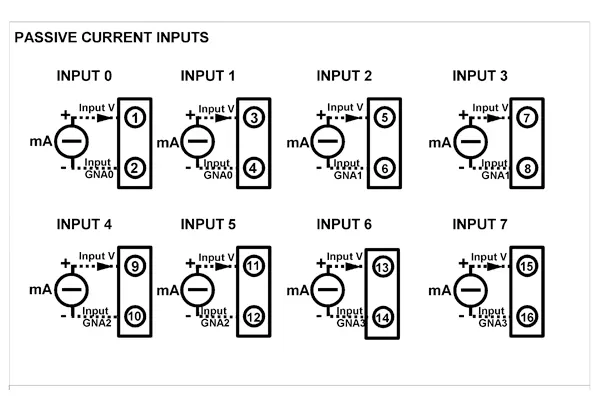

| INPUT | OUTPUT | POWER SUPPLY |
|---|---|---|
| 0-10 Vdc | Modbus TCP Ethernet 10/100T | Power Supply Voltage 14-30Vdc |
| -10 to +10 Volts | Reverse polarity protection 60Vdc | |
| CURRENT CONSUMPTION | CONFIGURATION | ISOLATION |
| Between 60 and 115 mA | PC Programmable | Between Input/Comms/Power Supply 1500Vac. |
| EMC | HOUSING | TEMPERATURE |
| For Industrial environments | Material self-extinguishing | Operating Temperature 14°F +140°F -10°C +60°C |
| Immunity EN 61000-6-2 | Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" | Storage Temperature -40°F +185°F-40°C +85°C |
| Emission EN 6100-6-4 | 106 x 112x x 57 mm | Humidity (non condensing) 0-90% |
| Weight 7 oz 200 g |
| Input: | |
| Channels | 8 Channels. |
| Voltage | 0-10 V, 2-10V, -10 to 10 V. |
| Communication: | |
| Ethernet 10/100T: | Modbus TCP. |
| Power Supply: | 14 - 30 Vdc. Reverse polarity protection 60 Vdc. |
| Current Consumption: | 60 mA Standby 115 mA Max. |
| Temperature rating: | Operative Temperature 14°F +140°F -10°C +60°C Storage Temperature - 40°F +185°F - 40°C +85°C. |
| Humidity: | (not condensing) 0-90%. |
| Housing: | Material self-extinguishing. |
| Dimensions: | W x H x T 4 3/4 x 4 x 7/8 inch, 120 x 100 x 22,5mm. |
| Weight: | 6 oz 160 g. |
| EMC. | For industrial environments. |
| Immunity: | EN 61000-6-2. |
| Emission: | EN 61000-6-4. |
| Isolation: | Input, Each Channel, Power Supply, 1500Vac, 50Hz, 1 Minute. |
| Configuration: | PC Configurable. |
| Power Supply (18-30Vdc). | Positive O Negative P. |
| Init | Pin Q Init Gnd P |
| Voltage Inputs | |
| Input 0 | Positive 1 Negative 2 |
| Input 1 | Positive 3 Negative 4 |
| Input 2 | Positive 5 Negative 6 |
| Input 3 | Positive 7 Negative 8 |
| Input 4 | Positive 9 Negative 10 |
| Input 5 | Positive 11 Negative 12 |
| Input 6 | Positive 13 Negative 14 |
| Input 7 | Positive 15 Negative 16 |
