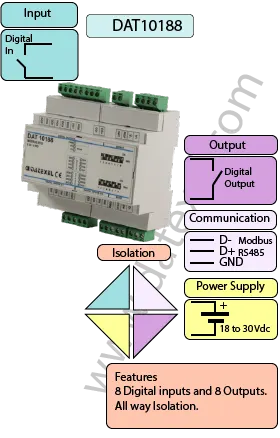

8 Digital inputs and 8 Digital Outputs on Modbus RTU DAT10188.
• CE.
• Modbus RTU Slave.
• 8 Digital Inputs.
• 8 Digital Outputs.
• RS485 Communication.
• Isolation.
General Description

The Modbus RTU DAT10188 is an 8 Digital input and 8 Digital output Modbus RTU device. The 8 digital input are on state between 10 and 30 V and off set below 3 V. The sample time is 5 ms. The 8 Digital outputs are PNP voltage outputs from 10 to 30 Volts. Maximum load 500 mA per channel or 1 A per module. 3 way Isolation is provided between the input outputs and power supply.

INPUT OUTPUT POWER SUPPLY
8 Digital Inputs 8 Digital Outputs Power Supply Voltage 10-30Vdc
Modbus RTU/ASCII Modbus RTU/ASCII Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 110 mA DIP Switch Programmable Between Input/Comms/Power Supply 2000Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4.1/4" x 4 1/2" x 2 1/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 106 x 112x x 57 mm Humidity (non condensing) 0-90%
Weight 7 oz 200 g

Specifications
Input:
Digital 8 Channels 0-3 V Off 10-30 V on
Output
Digital 8 Channels between 10.5 v and 30 Vdc.
Communication:
RS485: Modbus RTU, Modbus ASCII.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA to 45 mA.
Temperature rating: Operative Temperature 14°F +140°F, - 10°C +60°C Storage Temperature - 40°F +185°F, - 40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 4 1/4X 4 1/2 X 2 1/4 inch, 106 x 112 x 57mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Input, Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable, DIP Switch.
Drawings

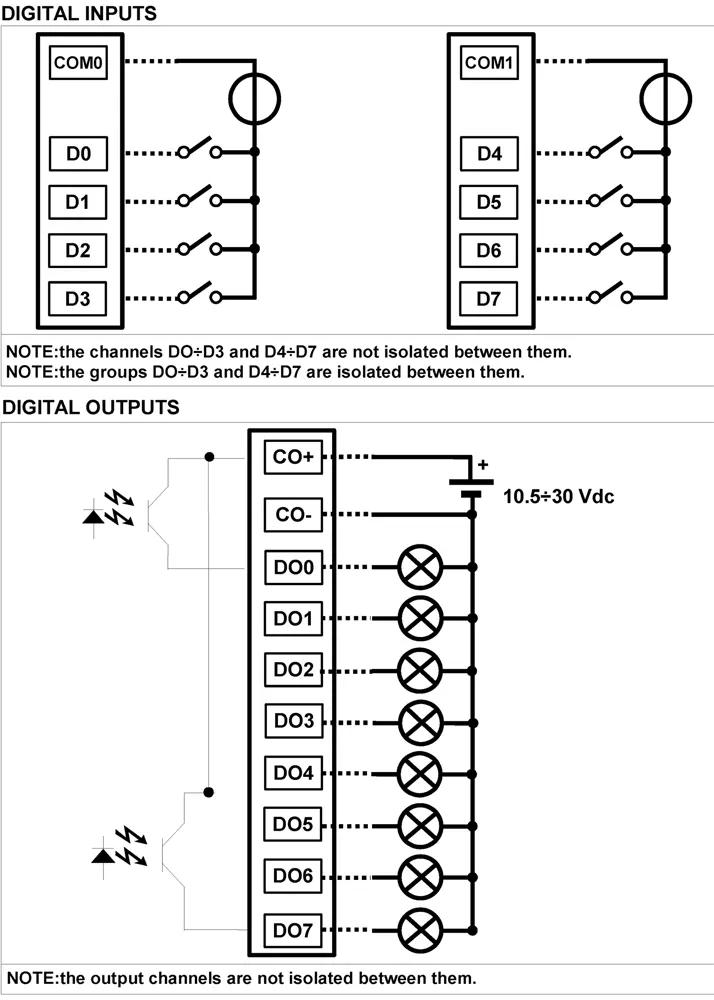

DAT10188 Digital Input, Output Wiring Diagram

Digital Input 0 Commom COM0 Input D0
Digital Input 1 Commom COM0 Input D1
Digital Input 2 Commom COM0 Input D2
Digital Input 3 Commom COM0 Input D3
Digital Input 4 Commom COM0 Input D4
Digital Input 5 Commom COM0 Input D5
Digital Input 6 Commom COM0 Input D6
Digital Input 7 Commom COM0 Input D7
Digital Output 0 Commom CO+ Digital Output 0
Digital Output 1 Commom CO+ Digital Output 1
Digital Output 2 Commom CO+ Digital Output 2
Digital Output 3 Commom CO+ Digital Output 3
Digital Output 4 Commom CO+ Digital Output 4
Digital Output 5 Commom CO+ Digital Output 5
Digital Output 6 Commom CO+ Digital Output 6
Digital Output 7 Commom CO+ Digital Output 7
8 Digital inputs and 8 Digital Outputs on Modbus RTU DAT10188.

DAT10188 Power Supply, Comms and INIT Wiring Diagram

Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND C
Init Pin D Init Gnd C
DAT10188 Power Supply Wiring Diagram.
