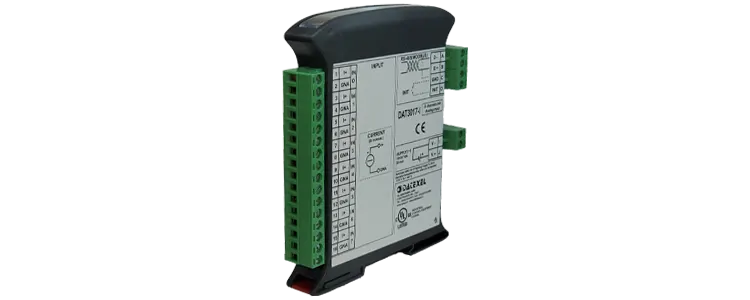

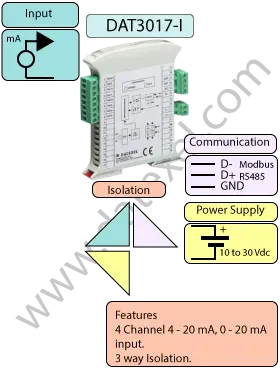

Current to RS485 converter DAT3017I
• Modbus RTU Slave.
• UL, CSA, CE.
• 8 x 4-20mA input.
• RS485 Communication.
General Description

The DAT3017-I Current to Modbus Converter is an 8-channel input module designed for acquiring current signals and transmitting them digitally over an RS-485 Modbus network. It converts the analog current input into a precise 16-bit digital format for integration with PLCs, SCADA, and other Modbus master devices.

Each channel supports a full-scale input of –20 to +20 mA and can be programmed for 0–20 mA or 4–20 mA operation. This makes the DAT3017-I suitable for monitoring multiple industrial sensors and transmitters simultaneously.

Communication is provided over RS-485 using the Modbus RTU protocol, with an option for RS-232 Modbus ASCII format. Configuration is performed using the free DAT3000–10000 software, downloadable from our website, which allows advanced setup and calibration.

INPUT OUTPUT POWER SUPPLY
4-20mA, 0-20mA. Modbus RS485 Power Supply Voltage 10-30Vdc
- 20 to 20 mA. Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 30 and 100 mA PC Programmable Between Input/Comms/Power Supply 2000Vac.
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature 14°F +140°F -10°C +60°C
Immunity EN 61000-6-2 Dimensions W x H x T 4" x 4 3/4" x 3/4" Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 100 x 120x x 22.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
DAT3017I RS485 Datasheet
Buy Online
Applications
Drawings
DAT3017I RS485 User Guide
Modbus Analog input Modules
Application Note

Specifications
Input:
Current: 8 Channels -20 to 20 mA
Communication:
RS485: Modbus RTU Slave.
Power Supply: 10 - 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: 30 mA.
Temperature rating: Operative Temperature -4°F +140°F -20°C +60°C
Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (not condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: W x L x H 3 3/4X 3 1/2 X 1 7/8 inch, 90 x 74 x 48mm.
Weight: 7 oz 200 g.
EMC. For industrial environments.
Immunity: EN 61000-6-2.
Emission: EN 61000-6-4.
Isolation: Between Modbus Master, Slave/Power supply 1500Vac, 50Hz, 1 Minute.
Configuration: PC Configurable.

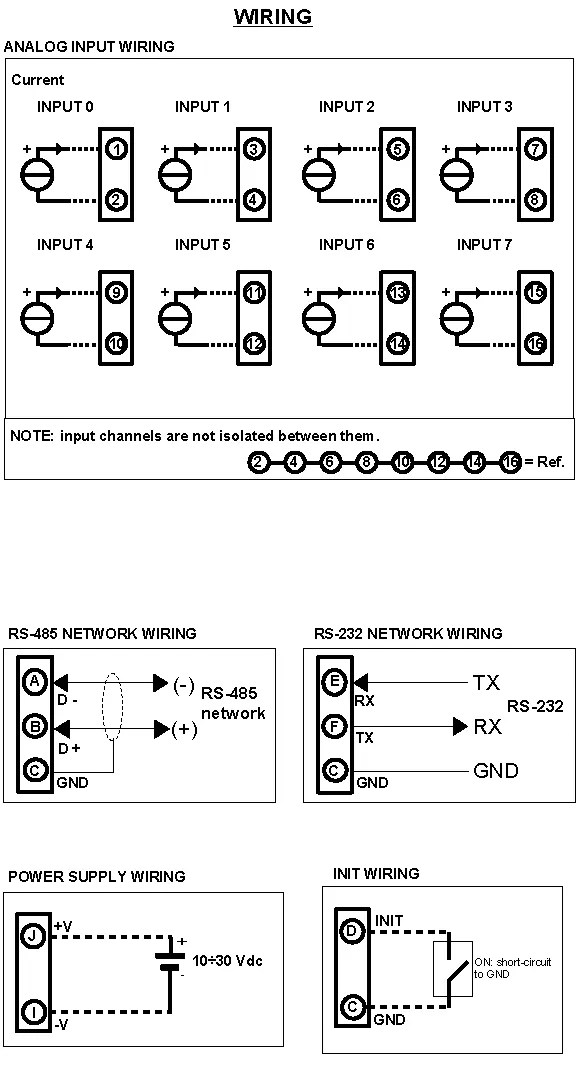

Drawings

Power Supply, Inputs and INIT

Current Input 0 Positive 1 Negative 2
Current Input 1 Positive 3 Negative 4
Current Input 2 Positive 5 Negative 6
Current Input 3 Positive 7 Negative 8
Current Input 4 Positive 9 Negative 10
Current Input 5 Positive 11 Negative 12
Current Input 6 Positive 13 Negative 14
Current Input 7 Positive 15 Negative 16
Power Supply (18-30Vdc). Positive J Negative I.
RS 485 Slave Positive (D+)B Negative (D-) A GND 6
RS-232D C GND
  E RX
  F TX
Init Pin D Init Gnd C
Current RS485 converter.

Applications

Frequently Asked Questions about DAT3017-I

What is the DAT3017-I?
The DAT3017-I is an 8-channel Modbus converter for current signals, converting them into a 16-bit digital format over RS-485 (Modbus RTU) or RS-232 (Modbus ASCII).
What input ranges does it support?
Each channel accepts –20 to +20 mA and can be programmed for 0–20 mA or 4–20 mA inputs.
How many channels does it provide?
The module provides 8 independent current input channels, doubling the capacity of the DAT3015-I.
How is the DAT3017-I configured?
The DAT3017-I is configured exclusively via the free DAT3000–10000 software, downloadable from our website. It cannot be configured by DIP switches.
What is the resolution of the conversion?
The signals are digitized with 16-bit resolution, ensuring accuracy and stability.
How does it communicate?
The DAT3017-I communicates via RS-485 using the Modbus RTU protocol, and is also available in an RS-232 ASCII version.
What applications is it used for?
The DAT3017-I is typically used for integrating multiple analog current signals from industrial transmitters and sensors into PLCs, SCADA systems, and Modbus networks.
Back to General Description
