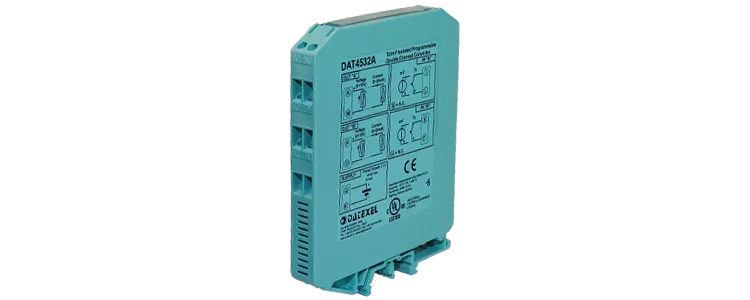

Dual Channel Thermocouple Temperature converter and mV Isolated converter DAT4532A.
• UL, CSA, CE.
• Dual Channel Thermocouple converter
• Dual Channel mV converter
• PC Programmable
• DIP Switch Configurable
• DIN Rail Mounted
• Isolated
General Description

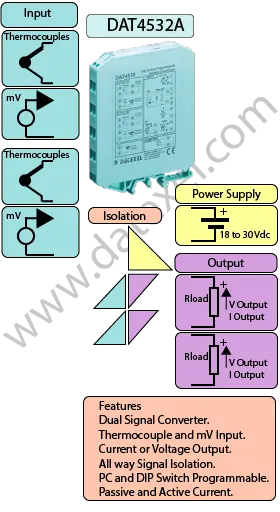

The DAT4532A is a versatile Isolated dual channel DIN rail mount thermocouple temperature converter designed for precision thermocouple temperature measurement and signal conversion. It features both internal and external cold junction compensation, ensuring accurate readings under various conditions. Programmable via PC or DIP switches, the DAT4532A offers flexibility and ease of use.

Key Features

  • Wide Thermocouple Compatibility: Supports multiple thermocouple types, including J, K, S, R, B, E, T, and N.
  • mV Signal Handling: Accepts millivolt inputs up to 800mV.
  • Linearized Output: Converts and linearizes the input signal for accurate representation.
  • Cold Junction Compensation: Ensures precise temperature readings by compensating for cold junctions.
  • Versatile Output Options: Provides both voltage and current outputs to meet various application requirements.
  • High Accuracy: Delivers precise measurements for critical applications.
  • Isolated: Ensures signal integrity and safety by providing isolation between input, output, and power supply.
  • PC and DIP Switch Programmable: Offers easy configuration through PC software or manual DIP switches.

The DAT4532A is ideal for applications requiring reliable and accurate temperature measurement and signal conversion. Whether for industrial processes, research, or automation, the DAT4532A delivers dependable performance and flexibility.

INPUT OUTPUT POWER SUPPLY
2 x Thermocouple 2 x Current 4-20 mA Power Supply Voltage 18-32Vdc
2 x mV 2 x 0-10 V Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 10 and 40 mA DIP Switch Programmable Between 3 way 1500Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +158°F -20°C +70°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
DAT4532A Datasheet
Buy Online
Applications
Drawings
Din Rail Temperature Transmitters

Specifications

Input:Channel A K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, mV, See Data sheet for range.
Input:Channel B K Type Thermocouple, J Type Thermocouple, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple. Potentiometer, Resistance, mV, See Data sheet for range.
Output: 2 X 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 55 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

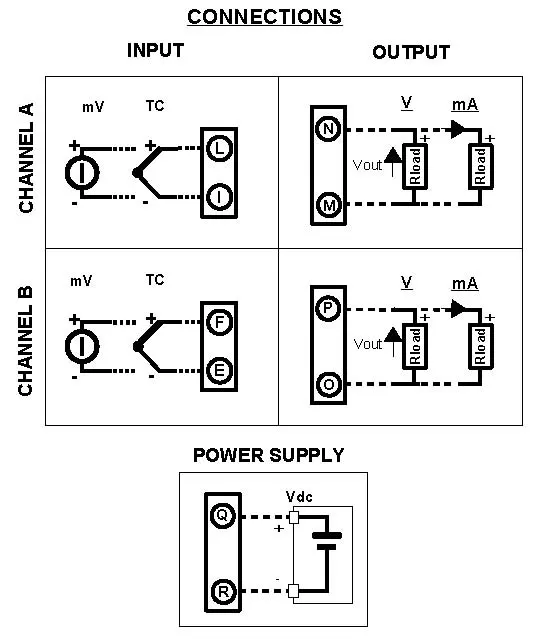

DAT4532A Wiring Diagram

Input
Channel A
Thermocouple Positive L and Negative I
mV Positive L and Negative I
Channel B
Thermocouple Positive F and Negative E
mV Positive F and Negative E
Output A
Current Positive N Negative M.
Voltage Positive N Negative M
Output
Current Positive P Negative O.
Voltage Positive P Negative O
Power supply Positive Q Negative R.
Dual Thermocouple converter.
