Din Rail Temperature Transmitters

Datexel manufacture a large range of Din Rail Temperature transmitters. From fully isolated, PC programmable temperature transmitters, Dip Switch Programmable are just some of the features available on the Datexel range of Temperature Transmitters. Some units are dual channel to help save space in a panel.

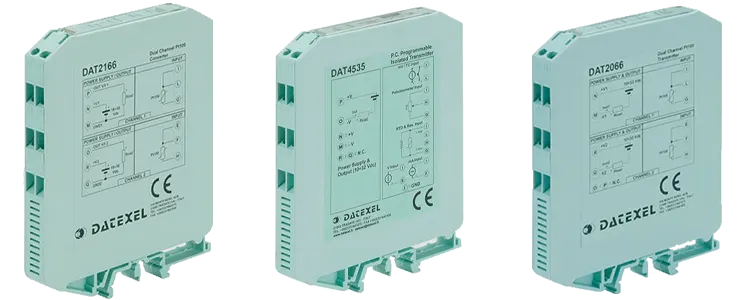

Datexel range of DIN Rail Temperature Transmitters.
Din Rail Temperature Transmitters
Input options include Thermocouples, RTD's, mV, Volts, Current, Thermistors, Potentiometers and resistance. Output options are either mA or voltage (only if converter option is selected). They can be programmed to be direct acting or reverse acting.

RTD Temperature Transmitter Din Rail

Buy online $137 RTD Temperature Transmitter

Input RTD.
Output 4-20mA

DAT2065 Datasheet
Dual Channel RTD Temperature Transmitter

Buy online $185
Dual RTD Temp Transmitter

Input 2 X RTD.
2 X Output 4-20mA

DAT2066 Datasheet
Thermocouple Temperature Transmitter

Buy online $120
Thermocouple Temperature Transmitter

Input Thermocouples.
Output 4-20mA

DAT2045 Datasheet
4 to 20mA Potentiometer Transmitter

Buy online $137
4 to 20mA Potentiometer Transmitter

Input Potentiometer, RTD, Resistance mV.
Output 4-20mA

DAT2105-2W Datasheet
Two Wire Signal Transmitter DIN Rail
Buy online $188
Two Wire Signal Transmitter

Input T/C's, RTD, Pot, Resistance, mV.
Output 4-20mA

DAT4535 Datasheet
Loop Powered Isolated Transmitter Din Rail

Buy online $226
Loop Powered Isolated Transmitter

Input T/C'S, RTD, Pot, mA Res, mV.
Output 4-20mA

DAT4035 Datasheet

DIN Rail Temperature converters (4 Wire)
Input options include Thermocouples, RTD's, mV, Volts, Current, Thermistors, Potentiometers and resistance. Output options are either mA or voltage (only if converter option is selected). They can be programmed to be direct acting or reverse acting.

Potentiometer Converter
Buy online $140
Potentiometer Converter

Input Potentiometer, RTD, Resistance mV.
Output Voltage and Current4-20mA

DAT2105-3W Datasheet
Din Rail Thermocouple Converter
Buy online $124
Din Rail Thermocouple Converter DAT2145

Input Thermocouples
Output 4-20mA

DAT2145 Datasheet
Pt100 Temperature Converter

Buy online $140
RTD Temperature converter DAT2165

Input RTD.
Output 4-20mA

DAT2165 Datasheet
Dual Channel RTD Pt100 Temperature Converter

Buy online $202
Dual Channel RTD Temperature converter DAT2166

Input 2 X RTD.
Output 4-20mA

DAT2166 Datasheet
Isolated Signal Converter Din Rail Mounted
Buy online $246
Isolated Signal converter DAT4135

Input T/C'S, RTD, Pot, mA Res, mV.
Output Current & Volts

DAT4135 Datasheet

DIN Rail Temperature converters (4 Wire) DIP Switch and PC Programmable with Isolation.
Input options include Thermocouples, RTD's, mV, Volts, Current, Thermistors, Potentiometers and resistance. Output options are either mA or voltage (only if converter option is selected). They can be programmed to be direct acting or reverse acting.

Thermocouple converter, mV Isolated Converter
Buy online $177
Thermocouple Temperature converter and mV Isolated converter

Input Thermocouples, mV.
Output Current & Volts

DAT4531A Datasheet
RTD converter and Resistance Converter
Buy online $177
RTD Temperature converter and Resistance converter

Input RTD, Resistance.
Output Current & Volts

DAT4531B Datasheet
Thermistor converter, Potentiometer Converter
Buy online $177
Thermistor converter, Potentiometer converter

Input Thermistor, Potentiometer.
Output Current & Volts

DAT4531C Datasheet
Voltage and Current Converter DIN Rail
Buy online $177
Voltage and Current converter

Input mA, Voltage.
Output Current & Volts

DAT4531D Datasheet

Dual DIN Rail Temperature converters (4 Wire) DIP Switch and PC Programmable with Isolation.
Input options include Thermocouples, RTD's, mV, Volts, Current, Thermistors, Potentiometers and resistance. Output options are either mA or voltage (only if converter option is selected). They can be programmed to be direct acting or reverse acting.

Dual Channel Thermocouple Converter
Buy online $255
Dual Channel Thermocouple Temperature converter and Dual Channel mV Isolated converter

Input 2 X Thermocouples, mV.

2 X Output Current & Volts

DAT4532A Datasheet
Dual Channel RTD Converter DIN Rail
Buy online $255
Dual RTD Temperature converter

Input 2 X RTD, Resistance.

2 X Output Current & Volts

DAT4532B Datasheet
Dual Channel Thermistor Converter DIN Rail
Buy online $255
Dual Thermistor converter and Potentiometer converter

Input 2 X Thermistor, Pot.

2 X Output Current & Volt

DAT4532C Datasheet
Dual Channel Voltage Converter DIN Rail
Buy online $255
Dual Voltage converter and Current converter

Input 2 X Current or Voltage.

2 X Output Current & Volts

DAT4532D Datasheet
