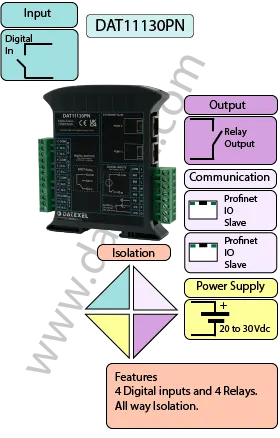

Profinet IO with 4 Digital inputs and 4 relay outputs DAT11130PN.

• Certified PROFINET IO Slave (Test Bundle v2.44 for RT CLASS 1, Conformance Class B, Netload Class III).
• 4 Digital Inputs with up to four 32-bit counters and debouncing function.
• 4 SPDT Relay Outputs for flexible control applications.
• Integrated Web Server for real-time monitoring and Ethernet diagnostics.
• LED Indicators for Ethernet activity, diagnostics, power supply, input, and output status.
• Remote Programmability for flexible configuration
• Galvanic Isolation to protect against electrical interference.
• Removable Screw-Terminal Connections for easy installation.
• Compact DIN Rail Mountable Design (22.5mm width) – compliant with EN-50022
• CE / UKCA Certified

General Description

The DAT11130PN is a certified PROFINET IO slave device featuring 4 digital inputs and 4 SPDT relay outputs, designed for seamless integration into industrial automation systems. Built with Test Bundle v2.44 certification, it supports RT CLASS 1, Conformance Class B, and Netload Class III, ensuring high reliability and compatibility. Equipped with a built-in Web Server, the device allows for remote monitoring of input and output states, as well as Ethernet diagnostics via a standard web browser. The galvanic isolation across all connections provides robust protection against electrical disturbances, making it ideal for industrial applications.

INPUT	OUTPUT	POWER SUPPLY
4 Digital Inputs	4 Relays SPDT	Power Supply Voltage 10-30Vdc
PROFINET IO slave device	PROFINET IO slave device	Reverse polarity protection 40Vdc
CURRENT CONSUMPTION	CONFIGURATION	ISOLATION
200 mA max	Remotely Programmable Integrated web server	Between Input/Comms/Power Supply 1500Vac.
EMC	HOUSING	TEMPERATURE
For Industrial environments	Material self-extinguishing	Operating Temperature 14°F +122°F -10°C +50°C
Immunity EN 61000-6-2	Dimensions W x H x T 4" x 4 3/4" x 3/4"	Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4	100 x 120x x 22.5 mm	Humidity (non condensing) 0-90%
Electrical Safety EN 61010-1	Weight 7 oz 200 g

DAT11130PN Datasheet

Buy Online
Applications
Drawings
DAT11130PN User Guide
DAT11130 GSDML file
Profinet IO Modules

Input:
Digital	On State 10- 30 Vdc and off State below 3 Vdc
Output
Relay	4 Relays SPDT.
Communication:
Ethernet:	PROFINET.
Power Supply:	10 - 30 Vdc. Reverse polarity protection 40 Vdc.
Current Consumption:	200 mA Max.
Temperature rating:	Operative Temperature -4°F +122°F - 20°C +50°C Storage Temperature - 40°F +185°F - 40°C +85°C.
Humidity:	(not condensing) 0-90%.
Housing:	Material self-extinguishing.
Dimensions:	W x H x T 4 3/4 x 4 x 7/8 inch, 120 x 100 x 22,5mm.
Weight:	6 oz 160 g.
EMC.	For industrial environments.
Immunity:	EN 61000-6-2.
Emission:	EN 61000-6-4.
Isolation:	Input, Each Channel, Power Supply, 1500Vac, 50Hz, 1 Minute.
PROFINET IO device Certificate number:	Z13985.

Power Supply (20-30Vdc).	Positive Q Negative P.
Ethernet Shield	Pin O to Gnd

Digital Inputs
Digital Input 0	Common I Input DI0 J
Digital Input 1	Common I Input DI1 L
Digital Input 2	Common I Input DI2 M
Digital Input 3	Common I Input DI3 N

Relay Outputs
Relay Output 0	Common 1 Normally open 2 Normally closed 3
Relay Output 1	Common 4 Normally open 5 Normally closed 6
Relay Output 2	Common 7 Normally open 8 Normally closed 9
Relay Output 3	Common 9 Normally open 11 Normally closed 10

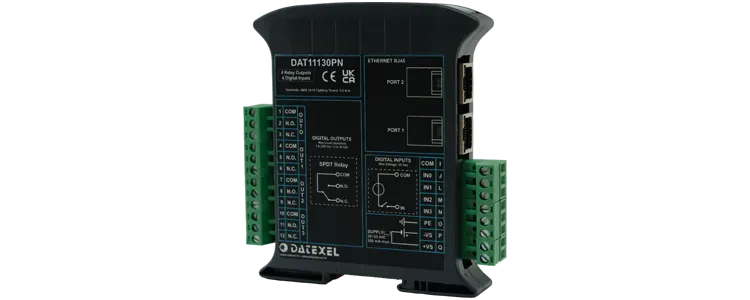

PROFINET IO Slave with 4 Digital Inputs and 4 Relay Outputs

DAT11130PN

DAT11130PN Power Supply and INIT Wiring Diagram
