RTD Temperature converter and Resistance converter

DAT4531B

DAT4531B RTD Temperature converter
Buy Online
RTD Temperature converter and Resistance converter, DAT4531B.
• UL, CSA, CE.
• Isolated RTD converter
• Isolated Resistance converter
• Isolated Pt100, Pt1000, Ni100, Ni1000 converter
• PC and DIP Switch Configurable
• DIN Rail Mounted

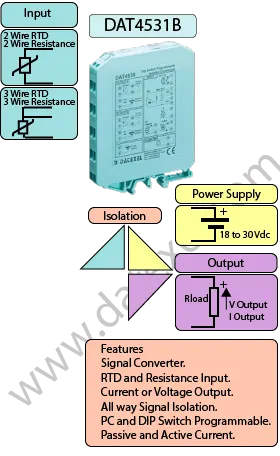

General Description

The DAT4531B RTD / Resistance Converter is a high-performance, DIN rail mount, isolated signal conditioner for precise temperature and resistance measurement. It accepts a wide range of RTDs — Pt100, Pt500, Pt1000, Ni100, Ni1000 — as well as resistance inputs up to 2000 Ω, and provides a temperature-linearized analog output in current or voltage format.

The DAT4531B features full galvanic isolation between input, output, and power supply to protect against ground loops and electrical noise. Configuration is available via PC software for fast, precise setup or via DIP switches for field adjustability. Typical outputs include 4–20 mA or 0–10 V, selectable to match PLC/DAQ requirements.

Designed for critical applications that require accuracy, stability, and safety, the DAT4531B extends beyond Pt100-only devices by supporting multiple RTD types and direct resistance measurement — making it the ideal upgrade path from non-isolated transmitters and single-format converters.

INPUT OUTPUT POWER SUPPLY
RTD, Resistance Current 4-20 mA Power Supply Voltage 18-32Vdc
0-10 V Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 10 and 40 mA DIP Switch Programmable Between 3 way 1500Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +158°F -20°C +70°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
DAT4531B Datasheet
Buy Online
Applications
Drawings
Din Rail Temperature Transmitters

Specifications

Input: RTD’s Pt100, Pt1000, Ni100, Ni1000. Resistance 0-2000 Ohms. See Data sheet for range.
Output: 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

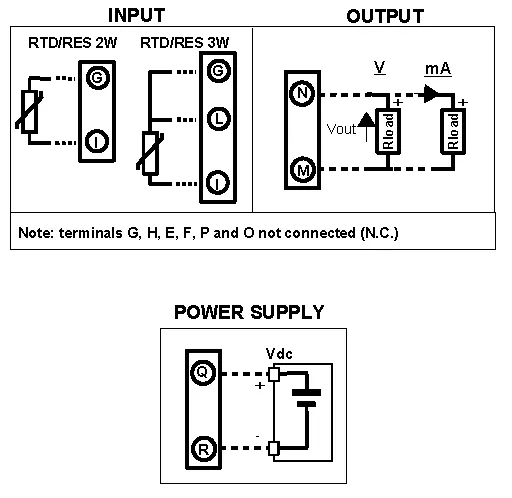

DAT4531B Wiring Diagram

Input
RTD 2 Wire G and I.
RTD 3 Wire I and L with compensation wire G
Resistance 2 Wire Positive L and Negative I
Resistance 2 Wire I and L with compensation wire G
Output

Current Positive N Negative M.
Voltage Positive N Negative M.
Power supply Positive Q Negative R.
RTD Temperature converter wiring Diagram.
Applications

DAT4531B Custom made products.

What is a DAT 4531/B 250708?
The DAT4531/B 250708 is a special version with input circuit designed to accept a Cu10 3 wire probe with a range of 0 to 200°C.
What is a DAT 4531/B 230310?
The DAT4531/B 230310 can accept a input from a Pt10 RTD probe.

Frequently Asked Questions – DAT4531B

How is the DAT4531B different from the DAT2065 / DAT2165?
The DAT4531B adds full galvanic isolation, supports more RTD types (Pt100, Pt500, Pt1000, Ni100, Ni1000) and direct resistance inputs, and offers both voltage and current outputs. The 20xx series is non-isolated and Pt100-only.
Which sensors are supported?
Pt100, Pt500, Pt1000, Ni100, Ni1000 RTDs, plus resistance inputs up to 2000 Ω.
Is the output temperature-linearized?
Yes. The input is measured and linearized to the configured temperature range, then converted to a voltage or current output.
What output formats are available?
Typical outputs include 4–20 mA current or 0–10 V voltage (see datasheet for other ranges).
How do I configure the device?
Use PC software for fast/precise setup or DIP switches for field configuration. Zero/span fine trim is available per the datasheet.
Does it provide isolation?
Yes. The DAT4531B provides galvanic isolation between input, output, and power supply to improve safety and signal integrity.
Back to General Description
