Thermistor converter, Potentiometer converter.

DAT4531C

Datexel Product Range
Thermistor converter and Potentiometer converter, DAT4531C.
• UL, CSA, CE.
• Isolated Thermistor converter
• Isolated Potentiometer converter
• PC and DIP Switch Configurable
• DIN Rail Mounted
• Potentiometer 0-50KΩ
General Description

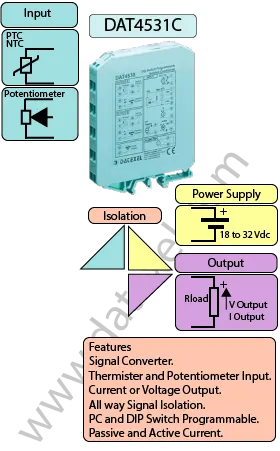

The DAT4531C is a versatile DIN rail mount converter designed for precision measurement and signal conversion of thermistors and potentiometers. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

Key Features

  • Wide Thermistor Compatibility: Supports multiple thermistor types for accurate temperature measurement.
  • Potentiometer Measurement: Accepts potentiometer inputs for accurate position or resistance measurement.
  • Linearized Output: Converts and linearizes the input signal for accurate representation.
  • Versatile Output Options: Provides both voltage and current outputs to meet various application requirements.
  • High Accuracy: Delivers precise measurements with high accuracy for critical applications.
  • Isolated: Ensures signal integrity and safety by providing isolation between input, output, and power supply.
  • PC and DIP Switch Programmable: Offers easy configuration through PC software or manual DIP switches.

The DAT4531C is ideal for applications requiring reliable and accurate measurement and signal conversion of thermistors and potentiometers. Whether for industrial processes, research, or automation, the DAT4531C delivers dependable performance and flexibility in a wide range of industrial and research applications.

INPUT OUTPUT POWER SUPPLY
Thermistor  Current 4-20 mA Power Supply Voltage 18-32Vdc
Potentiometer 0-10 V Reverse polarity protection 60Vdc
CURRENT CONSUMPTION CONFIGURATION ISOLATION
Between 10 and 40 mA DIP Switch Programmable Between 3 way 1500Vac.
PC Programmable
EMC HOUSING TEMPERATURE
For Industrial environments Material self-extinguishing Operating Temperature -4°F +158°F -20°C +70°C
Immunity EN 61000-6-2 Dimensions W x H x T 3 1/2" x 4 1/2" x 1/2 " Storage Temperature -40°F +185°F-40°C +85°C
Emission EN 6100-6-4 90 x 112x x 12.5 mm Humidity (non condensing) 0-90%
Weight 3 oz 90 g
DAT4531C Datasheet
Buy Online
Applications
Drawings
Din Rail Temperature Transmitters

Specifications

Input: Thermistor positive temperature coefficient KTY81-210, KTY81-220, KTY84-130, KTY84-150. negative temperature coefficient Coster 10 K and Coster 1K. Potentiometer 0-50 K ohms, See Data sheet for range.
Output: 4-20mA, 0-20mA, 0-10V.
Power Supply: 18 to 30 Vdc. Reverse polarity protection 60 Vdc.
Current Consumption: Current output 35 mA max. Voltage output 25 mA max.
Temperature rating: Operative -4°F +158°F -20°C +70°C
  Temperature Storage Temperature -40°F +185°F -40°C +85°C.
Humidity: (non condensing) 0-90%.
Housing: Material self-extinguishing.
Dimensions: 3 1/2" x 4 1/2 " x 1/2", 90 x 112x x 12.5 mm.
Weight: 3 oz 90 g.
EMC. For industrial environments.
  Immunity: EN 61000-6-2.
  Emission: EN 61000-6-4.
Configuration: PC Configurable and DIP Switch Configurable
Drawings

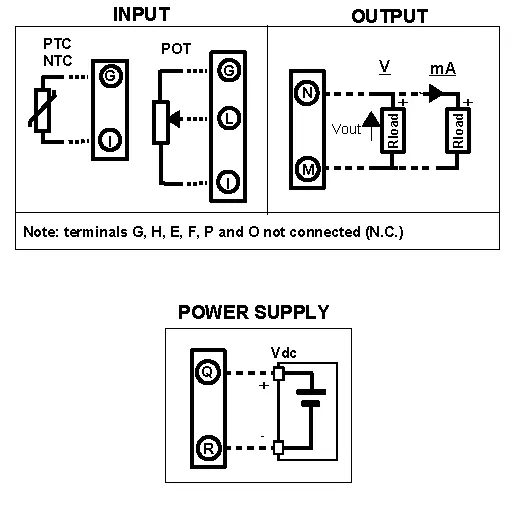

DAT4531C Wiring Diagram

Input
Thermistor Positive G and Negative I
Potentiometer Positive G and Negative I
Output
Current Positive N Negative M.
Voltage Positive N Negative M
Power supply Positive Q Negative R.
DAT4531C wiring Diagram.
