Head Mounted Temperature Transmitters and converters

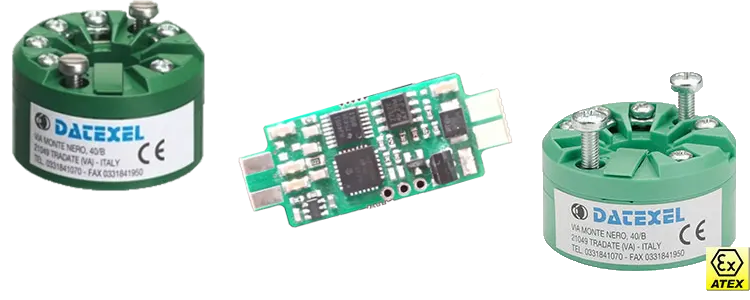

DAT1000 Series of Head Mounted Temperature Transmitters and converters.

The DAT1010 Head Mount RTD Temperature Transmitter is an economical, RTD head-mounted temperature transmitter, often referred to as a "hockey puck" transmitter. The DAT1010 is a versatile device that accepts inputs from RTDs, mV, resistance, and potentiometers. It converts these signals into a standardized output of 4-20mA.
The economical DAT1015 Temperature Transmitter is a thermocouple head-mounted temperature transmitter. It also accepts RTD, mV, potentiometer, and resistance inputs. The DAT1015 "in-head mounted temperature transmitter" is PC programmable.
The DAT1061 Isolated Head Mounted Temperature Transmitter is a hockey puck (head-mounted) isolated temperature transmitter. The input is galvanically isolated from the output at 1500 Vac. The inputs, ranges, zero, and span are configurable by PC.
The DAT1066 Isolated Temperature Transmitter is a thermocouple head-mounted temperature transmitter with a 4-20mA output. It accepts thermocouples, RTDs, mV, potentiometer, and resistance inputs. The DAT1066 is programmable by a PC using Prodat and DATASOFT software.
The DAT1135 Temperature Converter is a thermocouple head-mounted temperature converter with an output of 0-10 volts. The minimum span is 1V, allowing for standard outputs of 0-10V, 1-5V, and 2-10V. It accepts thermocouples, RTDs, mV, potentiometer, and resistance inputs and is programmable by a PC using Prodat and DATASOFT software.
The DAT1485 Modbus Temperature Transmitter converts thermocouple, RTD, potentiometer, resistance, and mV inputs to Modbus RTU or Modbus ASCII. The DAT1485 is head-mounted and designed to fit into a DIN B head mounting enclosure. The sensor input, power supply, and Modbus output are isolated from each other.
The DAT1010-OEM is an OEM temperature transmitter PCB board designed to fit in any small enclosure. It can be pre-programmed to customer settings, or a connector can be supplied for configuration with the Prodat programmer and Prosoft software, available from Datexel. The DAT1010-OEM accepts signals from RTDs, mV, resistance, and potentiometers, converting these signals into a 4-20mA output. The sensor type, range, zero, and linearization are programmable with Prodat software.
The DAT1015-OEM is an OEM thermocouple temperature transmitter The DAT1015-OEM is a versatile OEM temperature transmitter PCB board, engineered to fit into compact enclosures. This transmitter supports a wide range of input signals, including RTDs, thermocouples, mV, resistance, and potentiometers, and converts them into a standard 4-20mA output.
