Temperature Transmitters and converters
Input Potentiometer, RTD, Resistance mV.
Output Voltage and Current4-20mA
Input Thermocouple RTD mV, Potentiometer Resistance.
Output 4-20mA
Input Thermocouple RTD mV, Potentiometer Resistance.
Output 4-20mA
The Thermocouple Temperature Transmitter DAT2045 is a DIN rail mount transmitter with DIP switch programmability. It is voltage linear, not temperature linear, and offers an accuracy of 0.1% full scale with less than 0.02%/°F thermal drift. The coarse range and zero can be set using the DIP switches, and the output can be fine-tuned with potentiometers within the minimum and maximum ranges specified in the datasheet.
The RTD Temperature Transmitter DAT2065 is a DIN rail mount, loop-powered transmitter designed for Pt100 RTD inputs. It features DIP switch programmability, allowing users to select temperature ranges as wide as 1200°F (650°C) and as narrow as 120°F (50°C). The temperature range is set via DIP switches on the side, while the zero and span adjustments are located on the front of the transmitter.
The Dual Channel RTD Pt100 Temperature Transmitter DAT2066 is a DIN rail-mount transmitter with DIP switch programmability, designed to accept and transmit two separate channels and convert them to 2 x 4-20 mA outputs. It offers an accuracy of 0.1% full scale and has less than 0.02%/°F thermal drift.
The DAT2105-2W is a versatile and highly accurate potentiometer to 4-20mA transmitter, designed for a wide range of industrial applications. It features configurable inputs and outputs, ensuring precise and reliable performance.
The DAT2105-3W is a versatile potentiometer converter with a separate power supply, designed for industrial applications requiring a voltage or current output. It offers configurable inputs and outputs, ensuring precise and reliable performance.

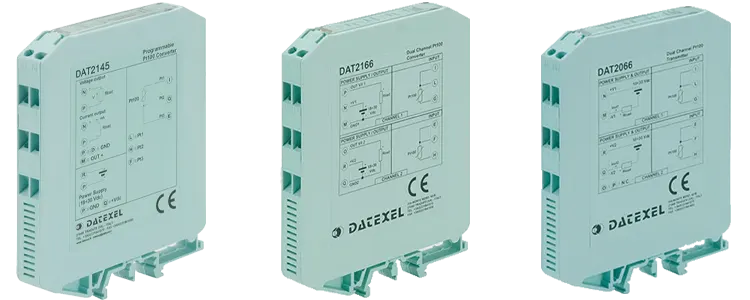

The DIN Rail Thermocouple Converter DAT2145 is a DIN rail mount temperature converter with DIP switch programmability. It converts thermocouple inputs to provide a 4-20mA, 0-20mA, or 0-10V output signal that is linear to the voltage input. The DAT2145 includes internal cold junction compensation.
The Pt100 Temperature Converter DAT2165 is a DIN rail mount temperature converter with DIP switch programmability. It offers both voltage and current output options.
The Dual Channel Pt100 Temperature Converter DAT2166 is a DIN rail mount temperature converter with DIP switch programmability, designed to accept and transmit two separate channels. The output can be configured as either voltage or current.
