Smart and Slim line Signal Conditioners

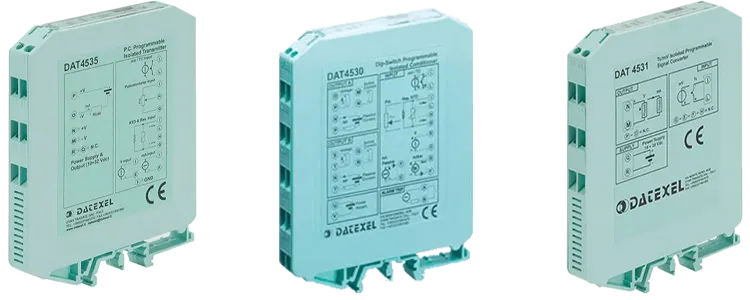

DAT4000 Series of Smart and Slim line Signal Conditioners

The DAT4235 is an all-way signal isolation converter with isolated input, output, and power supply. It is designed for DIN rail mounting and is PC programmable. With a thickness of only 12.5 mm (1/2 inch), it allows compact installation on either top hat DIN rail or G type DIN rail.

The DAT4530 is a 4-20mA signal splitter that converts any universal input signal into two analog outputs. The input can be a current (mA), voltage (mV, volts), thermocouple, RTD, resistance, or potentiometer. The outputs are selectable as either current (mA) or voltage and can be configured differently for each channel (e.g., Channel 1: 4-20mA, Channel 2: 0-10V).

The DAT4531A is a versatile DIN rail mount Thermocouple Temperature Isolated converter designed for precision Thermocouple temperature measurement and signal conversion. It features both internal and external cold junction compensation, ensuring accurate readings under various conditions. Programmable via PC or DIP switches, the DAT4531A offers flexibility and ease of use.

The RTD Temperature Converter and Isolated Resistance Converter DAT4531B is a DIN rail mount temperature converter. It is programmable via PC or DIP switches. The DAT4531B accepts signals from various RTDs, including Pt100, Pt1000, Ni100, and Ni1000, as well as resistance inputs up to 2000 ohms. The DAT4531B converts these signals, linearizes the scale, and provides either a voltage or current output.

The DAT4531C is a versatile DIN rail mount converter designed for precision measurement and signal conversion of thermistors and potentiometers. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

The DAT4531D is a versatile DIN rail mount converter designed for precision measurement and signal conversion of DC voltage and mA inputs. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

The DAT4532A is a versatile Isolated dual channel DIN rail mount thermocouple temperature converter designed for precision thermocouple temperature measurement and signal conversion. It features both internal and external cold junction compensation, ensuring accurate readings under various conditions. Programmable via PC or DIP switches, the DAT4532A offers flexibility and ease of use.

The DAT4532B is a versatile Isolated dual channel DIN rail mount RTD and resistance converter designed for precision temperature and resistance measurement and signal conversion. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

The DAT4532C is a versatile Isolated dual channel DIN rail mount converter designed for precision measurement and signal conversion of thermistors and potentiometers. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

The DAT4532D is a versatile dual channel DIN rail mount converter designed for precision measurement and signal conversion of DC voltage and mA inputs. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

The Two wire Signal Transmitter DAT4535 is a Universal isolated signal Transmitter which is either PC or DIP-Switch programmable. The input can be thermocouple, RTD, mA, V, mV, resistance and potentiometer and the output is a 4-20mA. The DAT4535 is loop powered and the power supply can be as low as 7 Vdc. The power supply range is 7 to 32 Vdc.

The Frequency Converter DAT4540T is a signal conditioning DIN rail mount converter that converts a pulse input to an analog output proportional to the set range, selectable from 0.1 Hz up to 20 kHz. The DAT4540T also includes a transistor output that can be used for alarms or pulse shaping. The input can be from a tacho, TTL, PNP transistor, or any Namur standard. The DAT4540T provides a voltage or current output that is isolated from the power supply and input.

The isolated frequency converter DAT4540R measures frequencies up to 20 kHz from TTL, Namur, NPN, PNP, and Tachometer digital signals. Depending on the programming, the measured values are converted into a current or voltage signal. Additionally, two relays are available for programming as trip alarms (version “-R”). For the Namur input, the integrity of the sensor is continuously checked; in case of fault (short circuit or interruption), an alarm is generated on the transistor output.

The DAT4631A is a versatile DIN rail mount converter and splitter designed for precision thermocouple temperature measurement and signal conversion. It converts and linearizes the signal from any thermocouple type, providing two isolated process signal outputs, either voltage or current. Programmable via PC or DIP switches, the DAT4631A offers flexibility and ease of use.

The DAT4531B is a versatile DIN rail mount RTD and resistance isolated converter designed for precision temperature and resistance measurement and signal conversion. It features programmable settings via PC or DIP switches, offering flexibility and ease of use for various applications.

The DAT4631C is a versatile DIN rail mount converter and splitter designed for precision measurement and signal conversion of thermistors and potentiometers. It converts and linearizes the signal from any thermistor or potentiometer, providing two isolated process signal outputs, either voltage or current. Programmable via PC or DIP switches, the DAT4631C offers flexibility and ease of use.

The DAT4631D is a versatile DIN rail mount converter and splitter designed for precision measurement and signal conversion of DC voltage and mA inputs. It converts and linearizes the signal from any sensor providing a mA or voltage signal, providing two isolated process signal outputs, either voltage or current. Programmable via PC or DIP switches, the DAT4631D offers flexibility and ease of use.

The Mathematical Signal Conditioner DAT4632D is a signal conditioning DIN rail mount converter that performs mathematical functions with two inputs and two outputs. The available functions include Sum, Difference, Multiplication, Division, Higher (Maximum) selector, and Lower (Minimum) selector. These functions are set using a PC and the Prodat programmer. The DAT4632D provides a voltage or current output that is isolated from the power supply and input.
